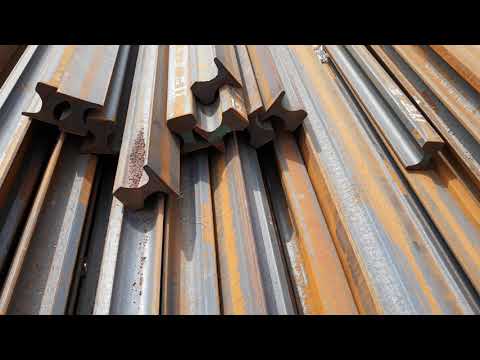

Crane Rail

Crane rails are specially designed steel rails that serve as tracks, enabling secure and smooth movement. In sectors, ports, warehouses, and shipyards, they provide the runway for lifts, gantry cranes, and overhead cranes. In this approach, crane rails essentially help to back and guide the crane's wheels, therefore guaranteeing a steady, constant path for the crane to follow while moving large weights. Excellent steel enables these rails to withstand the substantial weight and weight cranes exert during lifting and development activities. Made to resist high load pressures, crane rails—not at all like conventional railroad tracks—do not allow rapid development. Usually elevated on concrete or steel bars, they require a secure attachment to prevent any horizontal or longitudinal movement during crane operations. In crane development, security and efficiency depend mostly on the address of rectification and maintenance of crane rails. The rails—P-type and QU-type, among others—come in rather diverse distances across and profiles depending on the capacity and use of the crane. Crane rails give cranes a strong, resistant, and accurate track so they may safely and dependably total lifting operations in mechanical environments.

Each type of crane rail fits a different crane framework and stack need. The basic sets include P-type rails, QU-type rails, square bar rails, circular bar rails, I-beam rails, and S-ray rails. P-type rails, sometimes referred to as light rails, are routinely used in littler or medium-tonnage cranes; QU-type rails are heavy-duty and aimed for great gantry cranes and employments with larger stack needs. Made of solidified steel, square bar rails feature remarkable solidity and stack capacity fit for heavy-duty mechanical use. Circular bar rails are less demanding to introduce and maintain even if they have less capacity and usually used for lighter loads. For heavy-duty use, both S-beam and I-beam rails are implied; I-beams offer remarkable stack back and S-beams grant increased steadiness because of their unique form. Among other factors, stack weight, environment, and particular application guide crane rail sort decision. Counting steel, aluminum and composite materials may be selected for specific uses even if most materials are defined by their quality and hardness. Every type of rail is meant to guarantee in mechanical conditions safe, consistent, and successful development of cranes.

Crane and prepared rails vary essentially in their intended use, load they carry, and design. Designed especially to support and guide cranes—such as overhead or gantry cranes—which lift great loads over limited separations in mechanical environments such as ports or factories— Crane rails are designed to supervise very tall vertical weights even if their speeds are somewhat modest. More frequently than not found in bars or concrete companies, they have to provide a straight, accurate path for crane wheels to operate securely carrying massive weights. Again, prepared tracks are created for operating trains over great distances at faster speeds. Excellent steel amalgams used to make preparation rails can withstand pressures and handle heavy loads approaching fast-moving trains. Their frame is exactly formed to match funnel-shaped preparation wheels so that trains may organize twists easily and maintain solidity. Sleepers (ties) and balance back prepare rails; they offer seepage and spread the stack over a more noticeable zone. They too must allow the energetic powers of trains accelerating, braking, and turning, not at all like the mainly vertical loads on crane rails. Crane rails focus on transporting enormous, slow-moving loads in a straight path, while prepared rails are built for consistent, high-speed development with complex wheel-rail intuitive and weight distribution systems.

Crane rail standard lengths vary depending on application need and local requirements. Common lengths in the United States are 20, 33, 39, 40, 60, and 80 feet; some manufacturers offer rails ranging up to 80 feet long. For occasion, CR175 crane rails are often available in 20, 40, and 60-foot lengths. Standard lengths in Europe and other metric-based countries usually fall between 6 and 12 meters (between 20 and 40 ft.); be that as it may, extraordinary lengths can be made on the off chance that they are required. Usually offered in 10- to 12-meter lengths (about 33 to 40 feet), particular types are precise, such as the DIN536 A100 crane rail. The length of the crane rails selected depends on the establishment site, stack capacity, and crane sort as well as capacity. Although longer rails reduce the number of joints, thereby affecting the solidity and lowering the maintenance requirements, they may demand particular attention during construction even if they lessen the number of joints. Shorter rails are simpler to introduce and move even if they incorporate more associations. While allowing unique industrial designs, manufacturers as often as feasible make rails in standard widths. Whether at ports, stockrooms, or fabrication sites, the correct rail length equalizes basic judgment and feasible establishment issues to guarantee seamless crane operations.

The correct crane rail estimation can be helped by the crane's highest wheel stack, speed, operating recurrence, and climatic conditions. First, figure the wheel load—that is, the weight of the crane partitioned by the wheel count—that is, the stack weight most lifted. This parameter specifies the vertical weight of the rail. At that point, inspect the wheel distance across; larger wheels distribute the weight over a greater rail surface, hence reducing contact stretch. A 700mm wheel distance across would call for QU70 or QU80 rails; littler wheels, say 400–600mm, usually match P-type rails like P38 or P43. Measurements of the rail (tallness, width, and weight) have to match the bowing stretch and stack capacity. Typically, heavy-duty cranes—such as those lifting 75–160 tons—use QU100 or QU120 rails (50–120 kg/m) to provide more stature and width for stability. Broadly used in light-duty cranes (5–20 tons), P24 to P50 rails (24–50 kg/m) Consider the working surroundings; high-temperature or damaging conditions could call for particular steel grades like U71Mn for continuity. The ASTM (U.S.) and Clamor 536 (Europe) regulations govern rail profiles and fabric quality. Make sure you coordinate the plan for the crane by considering the span length and travel speed to foresee as much avoidance. See charts for determining rail that match wheel distance across, stack, and rail sort modifying security, taking a toll, and maintenance needs.

Rail type, wheel load, and operational conditions define a crane rail capacity. Typically, weight per meter (kg/m) and head width characterize crane rails in general based on their carrying capacity.For example, P24 (24 kg/m) carries up to 5–10 tons of crane whereas P38/P43 rails carry 16–20 tons. Lighter rails such as P24 30–50-ton cranes operate medium-duty rails such as QU70 (70 kg/m), while heavy-duty QU100 (100 kg/m) or QU120 (120 kg/m) rails operate 75–160-ton capacity. Wheel load—weight of the crane plus the load being lifted divided by wheels—and wheel diameter assist to calculate load capability. For heavy-duty operation, a rule of thumb is 2.5 mm of rail head width per ton of wheel weight. For a wheel diameter of 600mm, for instance, a wheel load of 35 tons requires approximately 92 mm of effective head width, which makes QU100 (100 mm) qualify. For similar heavy weights, typically in ports or industrial zones, rails such as DIN A100 (74.3 kg/m) or ISCR100 (Indian standard). Also critical is material strength; high-tensile steel rails (such as U71Mn with tensile strength of 690–880 N/mm²) enhance lifetime. Environmental factors such as high temperatures or corrosion may demand some steel grades. Proper alignment, installation, and maintenance ensure rails safely equal their rated capacity. For optimum performance, always equate the operating intensity, speed, and load demands of the crane with rail standards.

Crane rail weight differs with type and zone standards, given in kilos per meter or pounds per yard.Common are QU70 rails at approximately 52.8 kg/m, QU80 rails at approximately 63.7 kg/m, and QU120 rails at 118.1 kg/m.Smaller selections like P38 rails are approximately 38.7 kg/m, whereas American ones like CR175 weigh about 86.8 kg/m (175 lb/yd). For light systems, ASCE-standard rails range from light 12 lb/yd (6 kg/m), and for industrial cranes range from massive 175 lb/yd (86.8 kg/m). Based on size, European DIN-standard rails like A100 typically range between 74 and 100 kg/m. Heavy rails (e.g., QU120 or CR175) are utilized in shipyards and ports for loads above 100 tons, while lighter rails (e.g., P24 or 12 lb/yd ASCE) are appropriate for workshops or low-load cranes.Material composition ensures strength and resistivity under load through U71Mn or U75V steel. Weight precisely matches rail dimension: height, head width, and base width. QU80 rails, say (130mm high, 80mm head), strike a balance between utility and load carrying (50–100 tons). Typical lengths (say, 39 ft. in the United States or 12m in Europe) also contribute to total rail weight per unit, with delicate engineering to maintain stability and safety in commercial usage.

Crane rail dimensions vary by type, weight, and regional standards too. P-series rails (e.g., P24, P38, P43) and QU-series rails (e.g., QU70, QU80, QU100, QU120) are common types. Built to accommodate large cranes, heavier QU-series rails exist; QU70 has a 70mm head width and weighs ~52.8 kg/m; QU120 has a 120mm head and weighs ~118 kg/m. For cranes of lower capacities—say, 15–20 tons—P-series rails are lighter, for example, P38 (38 kg/m). With a height and width of 152mm, heavy-duty usage follows American specifications such as CR175 (175 lb/yd or approximately 86.8 kg/m). A120 rails (~101 kg/m weight) have a head width of 120mm, and European types (e.g., DIN A100) offer a head width of 100mm and weigh approximately ~75 kg/m. Providing rails in dimensions such as 75 lb/yd (~37 kg/m), Indian standards often correspond to IS 3443 standards for medium loads. Traditional lengths for rails in Europe (e.g., British Steel) are 6–12 meters, in the United States are 20–60 feet, and for ship container transport, 11.8–24 meters. Capacity for loads depends partly on metrics such as weight, height, and head width. A QU100 rail (88.96 kg/m head, 100mm) will for example hold cranes lifting between 75–125 tons, while smaller loads (<5 tons) are dealt with by P24 rails (24 kg/m). Steel grades like U71Mn, under strenuous use, supply endurance in the form of tensile strength (690–880 N/mm²). Type of crane, weight, and conditions of work determine the selection of rail.

Following defined criteria guarantees lifetime, security, and compatibility with many crane systems. Bunches follow set guidelines including American Society of Mechanical Engineers (ASME), Worldwide Organization for Standardizing (ISO), and European Committee for Standardizing (CEN). They deal with loads, measurements, materials, and building codes. Key specifications of importance for rail profiles, bendable quality (min. 650 N/mm²), surface quality for medium-to- high-obligation cranes are Commotion 536, common throughout Europe. While JIS E 1101 serves Japanese corporate needs, ASCE rules provide low-to-medium capacity frameworks. ASTM standards call for ASTM A509 control crane rails designated CR104, CR105, and CR175 within the United States with weights between 52 to 87 kg/m. Like QU, P the trains land in territorial profiles and configurations. For greater weights (50–400 tons) at mechanical and port sites, for instance, QU-series rails (QU70, QU80, QU120) are totally dimensionally for head width, height, and weight. Fabric measures allow steel grades with specific carbon content and mechanical properties (ductile quality, elongation) such as U71Mn or U75V. Installation instructions provide soft-mounted rails on elastomer cushions to be precisely adjusted and segmented individually to help to reduce vibration and wear. Compliance guarantees effective, safe crane operation under varying natural conditions and stack size.

Standard crane rail lengths vary based on geology and use. Common sizes inside the United States are 20, 33, 39, 40, 60, and 80 feet; additional assortments, such as CR105 and CR175, are available in 20, 40, or 60-foot segments. For example, 105-pound crane rails usually come in 39-foot lengths, just like the bigger rails in the 135-pound range that also use 39-foot norms. Usually spanning 10 to 12 meters (approximately 33 to 40 feet), European versions are exactly like the DIN536 A100 crane rail. You can create custom lengths to meet specific project requirements, such as mechanical forms that require longer persistent tracks for lowered joints and enhanced soundness. Variables determining length used are crane sort, stack capacity, and establishment coordinates. Longer rails carry ahead continuity and reduce support by minimizing welding or blasting foci; yet, dealing with and establishing them may ask for special equipment. In small areas, shorter railroads provide simpler mobility and flexibility. Standardization guarantees fit with crane wheels and rear frameworks, thus balancing auxiliary judgment with pragmatic issues for ports, distribution centers, and mechanical plants. Territorial tastes also influence measurement; American guidelines require feet-based estimations, while European plans utilize metric measurements.

Crane rails drop into bunches based on geographical factors, plan benchmarks, and stack capacity. Common classifications match changing operational needs: light rails, overpowering rails (P arrangement), and master crane rails (QU configuration). The QU series—e.g., QU70, QU80, QU100, and QU120—feature more extensive heads and thicker profiles for heavy-duty employments counting ports and huge gantry cranes lifting loads from 50 to over 400 tons. Heavy-duty rails counting P38, P43, and P50 are general-purpose rails used for medium-capacity crans; weights stretch from 38 to 50 kg per meter. Littler and used for low-capacity cranes in industrial buildings or stockrooms are light rails. Whereas territorially DIN-standard rails (well known in Europe) provide strength for mechanical circumstances to start with need, MRS rules (North America) stretch wear resistance for high-traffic use. ASCE runs low-to-medium capacity frameworks while JIS benchmarks (Japan/Asia) focus on quality for overwhelming industrial needs. Measurements (height, width, weight) and materials—such as U 71Mn steel for strength—also help to identify railroads. Customized rails break out great forms or heavy loads. Ensuring security and competency guarantees compatibility with crane types, stack needs, and environmental conditions.

A rail is a steel bar that is employed as the path for cars such as trains, trams, or cranes so they can travel smoothly on a set course. It offers a strong, long surface to bear and direct wheels, thus promoting safe and efficient mobility. Urban transport networks, factories, harbors, and railways widely use rails. There are a number of rail types made for particular applications. Double-headed rails, with the aim to be used back and forth, have the same top and bottom components; their lower portion wears unevenly, thus they are out of date. Usually used on old train tracks, bull-headed rails have a smaller foot (base) and larger head (upper portion), which necessitates some chairs for support. Flat-footed rails (Vignoles rails) are the most commonly used type, as their wide base enables direct fixing to sleepers without additional attachments, thus ensuring stability and economy. Generally found in buried tramway systems in roads, grooved rails have a recessed track to accommodate wheel flanges. Inspect parallel-laid rails to steer wheels on steep curves or prevent derailments. For heavy-duty use, thick web rails and asymmetric rails for specialized load distribution are also specialized varieties. Each type is selected according to load capacity, ambient conditions, and longevity required.
