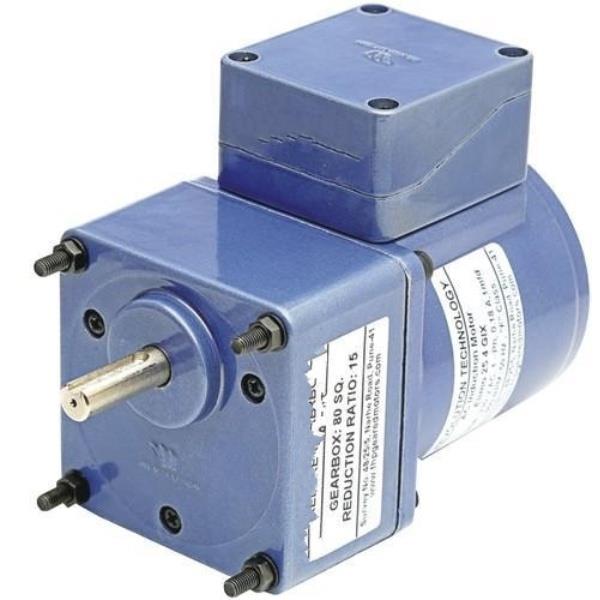

25 Watt AC Gear Motor
₹ 4,500 Get Latest Price
| Brand | Others |
| Voltage | 220 v / 415 v |
| Power | 25 Watt |
| model | 25 Watt AC Gear Motor |
| Phase | Single or Three Phase |
25 Watt AC Gear Motor,It is an Induction Motor which is also called as FHP Motor. Its output power is 25 Watt Motor Read More...
Related Products
Trusted
Electric AC Motor, Speed: 1440 RPM
₹ 25,000
| Frequency : 50 Hz +- 3% |
| No of Phase : Single Phase |
| Speed : 1440 RPM |
| Temperature : 40 degree C |
Single Phase 15 W Geared Servo Motors, For Industrial
₹ 2,500
| Country of Origin : Made in India |
| Phase : Single Phase |
| Power : 15 W |
| Rated Speed : 200 RPM |
₹ 8,500
| Brand : Crompton |
| IP Rating : IP65 |
| Motor Type : Foot Mounting |
| No Of Phase : Single Phase |
Three Foot Mounted Crompton IE2 Premium Efficiency Motors, Power: 10 HP, 420V
₹ 14,500
| Ambient Temperature : 45 Degree C |
| Brand : Crompton |
| Color : Green |
| Efficiency : IE2 |
15 HP Crompton greaves motor, 1500 rpm
₹ 57,000
| Horsepower : 15 HP |
| Minimum Order Quantity : 1 |
| No. of Poles : 6 |
| Phase : Three Phase |
4 Pole Crompton Motor 5 Hp Single Phase, 1440 rpm
₹ 29,500
| Brand : CROMPTAN |
| Frequency : 50 Hz |
| Horsepower : 5 HP |
| Mounting Type : Foot |
3 Piston Pump 2 Hp Crompton Motor Single Phase, 1000 rpm
₹ 75,500
| Maximum Discharge Flow : 17 Lpm |
| Maximum Discharge Flow : Less than 100 LPM |
| Maximum Pressure : 100 bar |
| Motor Power : 2 hp |
General Details
| model | 25 Watt AC Gear Motor |
| Voltage | 220 v / 415 v |
| Power | 25 Watt |
| Phase | Single or Three Phase |
Description
It is an Induction Motor which is also called as FHP Motor. Its output power is 25 Watt Motor ie. 1/30th Horse Power (HP) Revolution Technology, our company manufacturers of these 25 Watt motors. The 25 Watt Motors comes with four types of different supply voltages. These are 110 Volt AC-Single Phase, 230 Volt AC-Single Phase, 230 Volt AC-Three Phase, 415 Volt AC-Three Phase, Continuos Rating, TE Aluminium Die Cast Body. 25 Watt Motor can rotates in clock wise or counter clock wise direction. Over runs after few rotations after supply is cutt off. Speeds are 2880 / 1440 and further low speeds with the gearbox.Terminal box or open lead wires for connections. In 25 Watt Motor we can further reduce the basic speed of the motor by attaching the gearbox with the motor. 25 Watt Motor come in 80 mm square frame size. The gearbox suitable for the 25 Watt motor is Gearbox with square 80 mm. In 25 Watt Gear Motor Revolution Technology offers reduction ratios 3 to 180 (20 types). 25 Watt Motors can be useful for the different industrial applications like stirrers, tablet dissolution machines etc.
