Home » Sensors & Transducers » Load Cell » ADI Artech ADI- 30310 5 Ton Shear Beam Load Cell

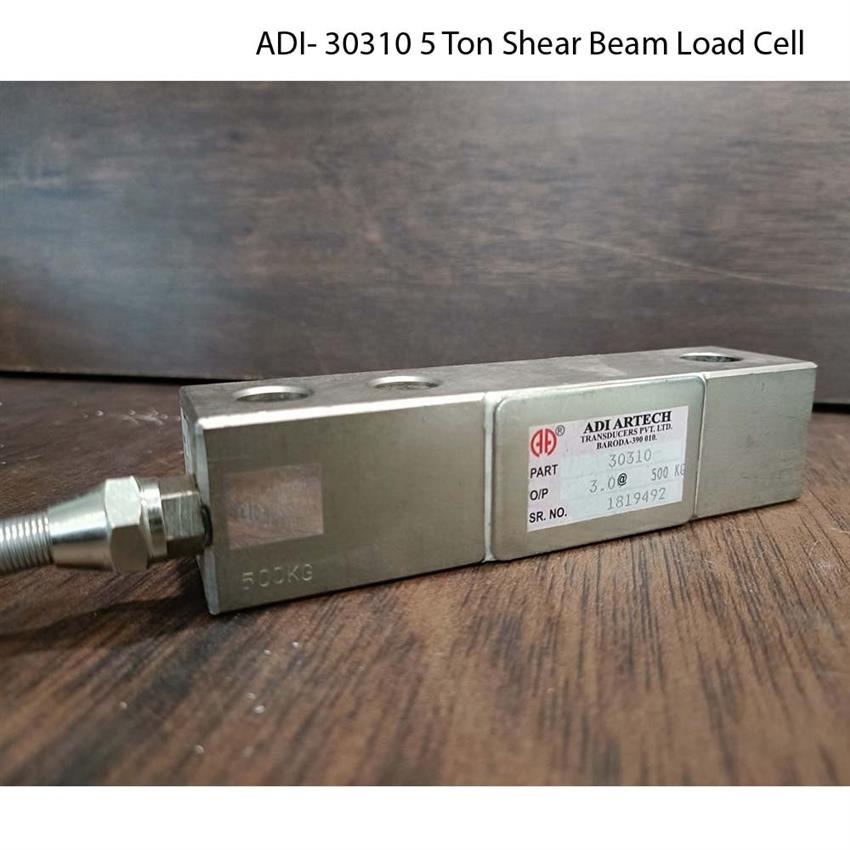

ADI Artech ADI- 30310 5 Ton Shear Beam Load Cell
₹ 4,400 Get Latest Price
| Brand | Others |
| Zero balance | +/- 1% FS |
| Deflection | < 0.5 mm at FSO |
| Creep (30 minutes) | <+/- 0.03 %FSO |
| Hysteresis | <+/-A 0.02 %FSO |
| Temperature Effect on Output | <0.0015 % FSO/ Degree C |
| Temperature Effect on Zero | <0.0020 % FSO/ Degree C |
GST No - 24ATGPS1935D1ZU
Member since 2023
D-58, SUMEL-5, MOJE ASARWA, AHMEDABAD, Ahmedabad, Gujarat, 380016
Looking for the latest ADI Artech ADI- 30310 5 Ton Shear Beam Load Cell price in Ahmedabad? Sunrise Technology, one of Ahmedabad's best ADI Artech ADI- 30310 5 Ton Shear Beam Load Cell sellers & man Read More...
Related Products
Star Performer
S Type Load Cell 100/200/300/500 Kg
₹
3,500
6,000
| Capacity : 100 / 200 / 300 / 500KG |
| Load Capacity : 100 / 200 / 300 / 500KG |
| Modal : CZL-301 |
| Shape : S |
Shear Beam Type Load Cell, 150kg
₹ 7,100
| Application : Pallet Truck Scales |
| Capacity : 150kg |
| Ingress Protection : IP68 |
| Material : Stainless Steel |
Analog Dial Calibration Tester LC 0.001 mm
₹ 64,800
| Brand : Indian |
| Display Type : Analog |
| Least Count : 0.0002 mm |
| Meter Type : Analog |
₹ 1,500
| Application : Textile industry |
| Capacity : 5 Kg - 7.5 MTon |
| Features : Long life span |
| Ingress Protection : IP65 |
Zemic Load Cell 30 Ton Analog, For Industrial
₹ 5,800
| Brand : ZEMIC |
| Capacity : 30 TONNE |
| Country of Origin : Made in India |
| Load Capacity : 100 kg |
CZL- 642 Single Point Load Cell 300 KG
₹ 750
| Input Resistance : 400+-10 ohm |
| Model : CZL-642 |
| Operating Temperature : 65 Degree C |
| Temperature Effect on Zero : 0.03%F.S/10 Degree C |
ADI 70610 Ball Type Load Cells, 10-30 Ton
₹ 6,000
| Brand : ADI |
| Capacity : 10-30 Ton |
| Ingress Protection : IP68 |
| Material : Nickel Alloy Steel |
Laumas Single Point Load Cell 15kgs
₹ 9,650
| Application : Bench scale |
| Cable Length : 20 m |
| Compensated Temperature Range : -10 to +40 Deg C |
| Creep Error (30 minutes) : +/-0.03% FS |
General Details
| Insulation Resistance | >1000 Mega Ohms at 50 VDC |
| Ingress Protection | IP67 |
| Load Capacity | 5 Ton |
| Brand | ADI Artech |
| Temperature Effect on Zero | <0.0020 % FSO/ Degree C |
| Temperature Effect on Output | <0.0015 % FSO/ Degree C |
| Zero balance | +/- 1% FS |
| Input Resistance | 390 +/- 3.5 Ohms |
| Deflection | < 0.5 mm at FSO |
| Temperature | 60 Degree C |
| Allowable Side Load | 50 % of Rated Capacity |
| Ultimate Overload | 300 % of Rated Capacity |
| Safe Overload | 150 % of Rated Capacity |
| Excitation Voltage | 10 VDC - Maximum 15 VDC |
| Standard Capacities | 100 Kgf/1 Tf |
| Nominal Output | 3.0 mV/V |
| Non | Linearity-<+/-00.025 % FSO (Full Scale Output) |
| Hysteresis | <+/-A 0.02 %FSO |
| Non | Repeatability-< +/- 0.01 % FSO |
| Creep (30 minutes) | <+/- 0.03 %FSO |
| Bridge Resistance | 390 +/- 3.5 Ohms |
Description
Features:
- 100 Kgf. to 10000 Kgf. Capacities offered
- Complete Environmental Protection -IP67 Class
- Standardized output (3.0 +/- 0.25%) available on request
- Also available in stainless steel construction Model -30310-SS, suitable for hygienic applications like Food, Dairy & Pharmaceutical Industries and Corrosive Chemical
Applications:
- Low Profile Floor Scales.
- Tank. Hopper & Bag Weighing
- Force & Tension Measurement
- Industrial Automation
- Pallet Scale.
Specifications:
- Standard Capacities (Kgf.)/(Tf): 150, 200, 250, 300, 500,� 750/1.5, 2, as, 3, 5, 7.5, 10
- Bridge Resistance:
- Side Load Discrimination: 500 : 1
- Temperature: 0-60� C
- Tightening Torque: Please refer table on back page
- Finish & Construction: 30310 - Electroless Nickel Plated Tool Steel, 30310-SS - Hardnable Stainless Steel-17-4 PH
