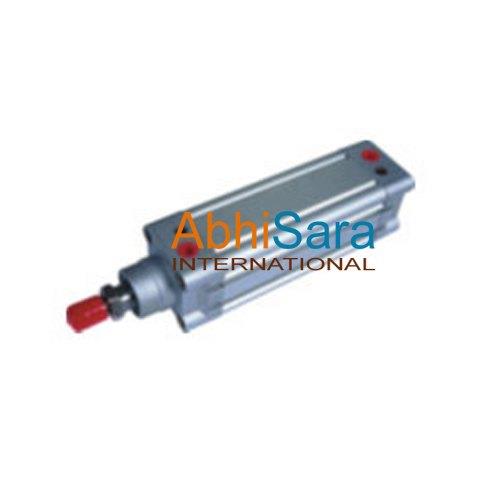

Pneumatic Cylinder
₹ 2,500 Get Latest Price
Product Specifications
| Power | Pneumatic |
| Pressure Range | up to 12 bar or higher |
| Stroke | 50 mm |
| I Deal In | New Only |
| Body material | Aluminum die cast /Aluminum alloy |
| Theoretical force at 6 bar pressure | 1500N or higher |
| Temperature Range | Up to 50C or higher |
| Seal material | TPE-U ( PU) or equivalent |
| Position detection | via Proximity Sensor |
| Pneumatic connection | 3/8 inch |
| Piston rod thread | M16x1.5 ( male ) |
| Piston diameter | 63 mm |
| Mode of operation | Single Acting or Double Acting |
| Cushioning | Pneumatic cushioning adjustable at both end |
GST No - 24ABMFA6348N1ZY | Member since 2023
Phase IV, 52- Radhe Estate, Nika Tube Chokdi, GIDC, Vatva, Ahmedabad-382445, Gujarat, India
Looking for the latest Pneumatic Cylinder price in Ahmedabad? Abhisara International, one of Ahmedabad's best Pneumatic Cylinder sellers & manufacturers, offers a wide range of Pneumatic Cylinder fr Read More...
Product Details
- End caps - Aluminium diecast / Cast Ion
- Tie rod - Tensile Steel Zinc Plated
- Piston - Aluminium machines
