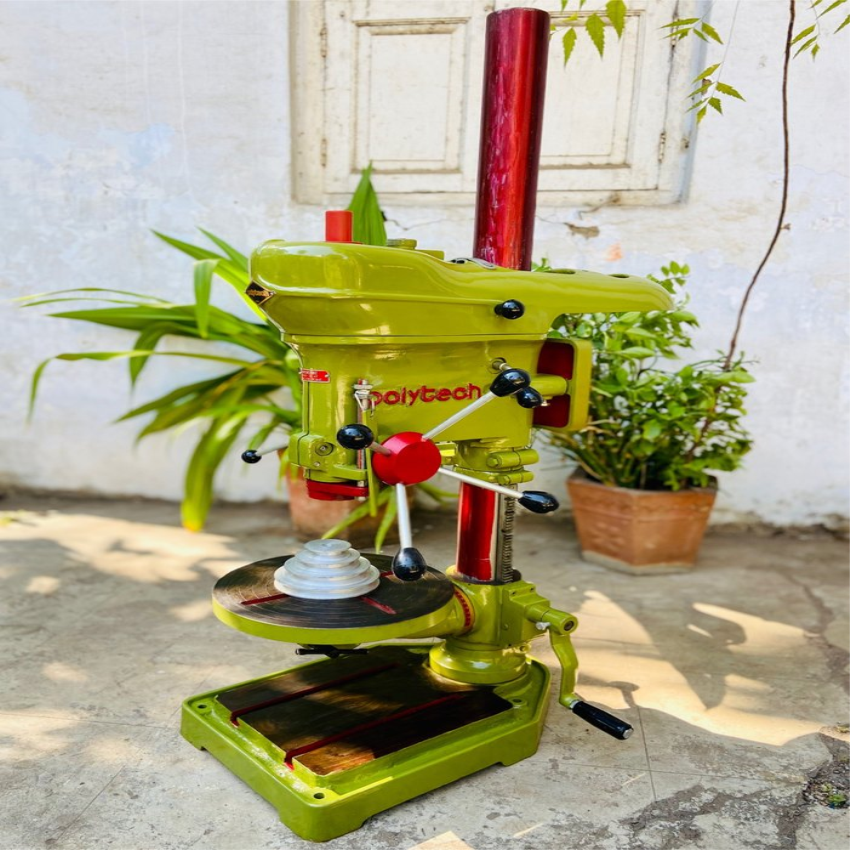

Polytech Classic Drilling Machine, Pillar, Spindle Travel: 130 mm
₹ 20,000 Get Latest Price
Product Specifications
| Drilling Diameter | 20 mm |
| Power | 750 Watt |
| Voltage | 220-440V |
| Base Size | 495 mm X 318 mm |
| Brand | Polytech |
| Country of Origin | Made in India |
| Diameter of Column | 74 mm |
| Distance from Spindle Nose to Pillar Surface | 200 mm |
| Drilling Capacity in Cast Iron | 20 mm |
| Drilling Radius Min/Max. | 200 mm |
| Features | Drilling,Tapping |
| Finishing | Paint Coated |
| Frequency | 50-60Hz |
| G W N W | 100 Kg approx |
| Layout | Vertical |
| Recommended Order Quantity | 1 |
| Model Name/Number | PM1/4 |
| Number of Spindle Speed | 8 |
| Over all Height with Guard | 1250 mm |
| Range of Spindle Speed | 86 to 3360 RPM |
| Spindle Speed Range | 86 to 3360 RPM |
| Spindle Travel | 130 mm |
| Taper in Spindle | MT2 |
| Type of Drilling Machine | Pillar |
| Type of Spindle Bore | MT2 |
| V Belt No | 43 |
| V Belt section | A |
