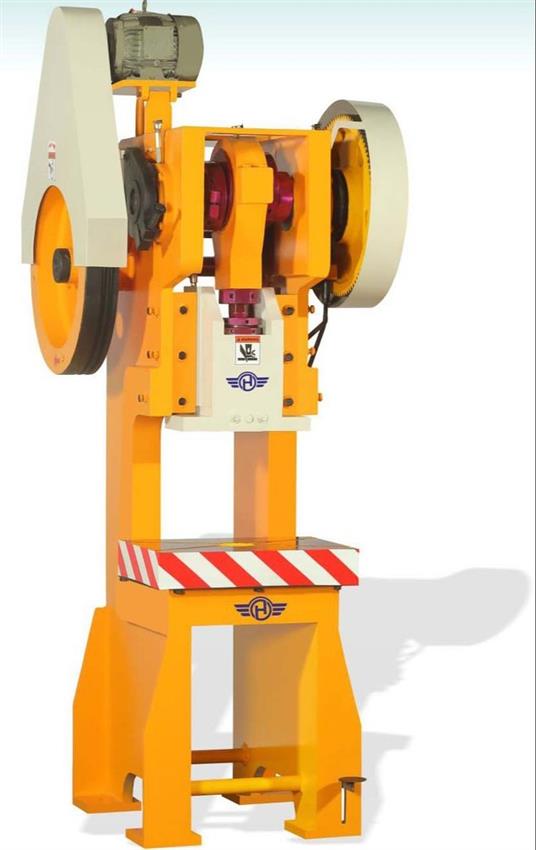

Power Source: Mechanical Mild Steel 20 Ton C Type Power Press Machine
₹ 1,50,000 Get Latest Price
Product Specifications
| Automation Grade | Manual |
| Usage/Application | Industrial |
| Material | Mild Steel |
| Load | 0-30 Ton |
| Power Source | Mechanical |
| Categories | Press |
| Color | yellow |
| Model No | HPC-20 |
| Length and Width of Bed | 500x300 mm |
| Thickness of Bilster | 75 mm |
| Motor Speed | 1440 rpm |
| Weight | 1000 Kg |
| Fly Wheel Dia | 605 mm |
| Press Capacity | 20 Ton |
| Recommended Order Quantity | 1 |
GST No - 24ALIPD3960H1ZA | Member since 2023
OPP TATA SHOWROOM, HARIHAR AGRO ENTERPRISE, KOTHARIYA NAKA,, GONDAL ROAD, Rajkot, Gujarat, 360004
Looking for the latest Power Source: Mechanical Mild Steel 20 Ton C Type Power Press Machine price in Rajkot? Harihar Agro Enterprise, one of Rajkot's best Power Source: Mechanical Mild Steel 20 Ton Read More...
Product Details
- C type presses have a bed plate which is used to lock the die bottom bolster. For locking the die, T-bolts are used and so this plate contains T-slots into which T-bolts are slid in.
- These slots are placed diagonally and with a slot horizontal to the longer side of the plate, is the general practice.
- These slots run up to a central hole made in the plate, the hole being large enough to accommodate another bush with a hole, the hole being used for dropping the punched part to the bottom of the press.
- The top of the tool butted against a vertical sliding ram with a clamping system which accommodates only a particular diameter of a threaded cylindrical member called the "shank" of the tool. The bottom portion of the tool is locked to the bottom bed plate and the top portion of the tool is locked to the sliding ram.
- Top and bottom portions of the tool are generally guided by suitable pillar and bush assemblies, which gives safety to the punching
- elements of the tool.
