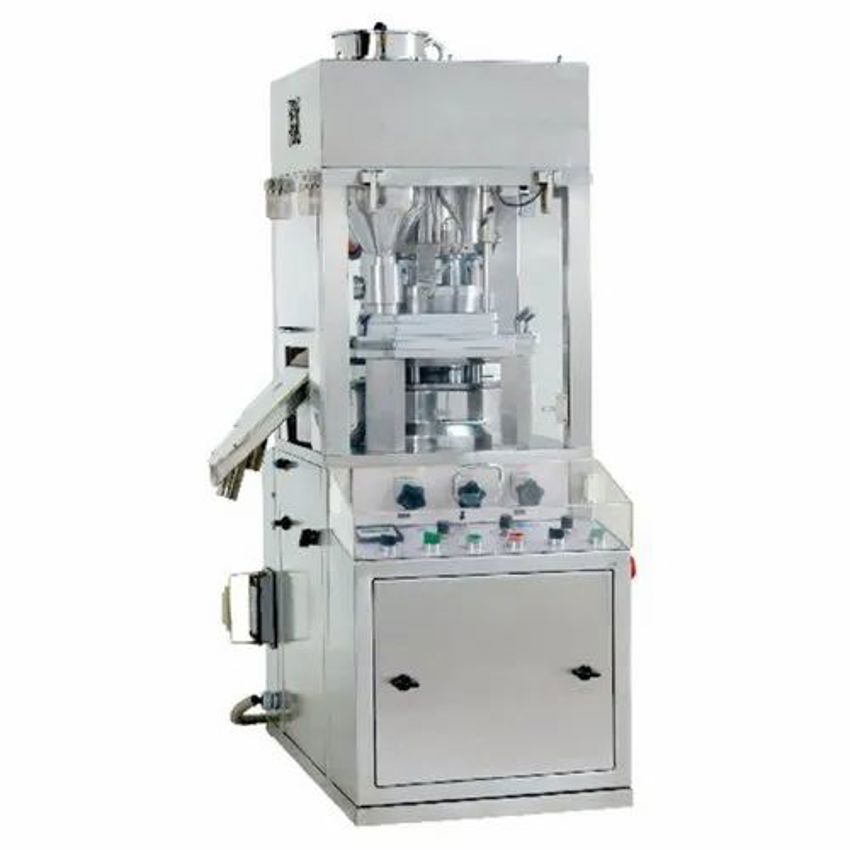

R&D AWC Tablet Press Mini, Model Name/Number: Tab 10a-12
₹ 14,50,000 Get Latest Price
Product Specifications
| Capacity | 21600 tab/hour |
| Model Name/Number | TAB 10A-12 |
| Brand | Tabpack |
| Weight | 850 kg |
| Feeder Type | Force Feeder |
| Motor Power | 90 W |
| Tablet Thickness | 1 mm |
| Compressed Air Requirements | 6 bar |
| Standard Type | STD Variant |
| Dimension | 1300x1400x2050 mm ( LxWxH) |
| Maximum Tablet Diameter | 13 mm |
| Punch Length | 133.6 mm |
| Tooling | BB |
| Number of Punch Station | 12 Station |
| Punch Type | EU/TSM |
| Punch Shaft Diameter | 19 mm |
| Die Diameter | 24 mm |
| Die Height | 22.22 mm |
| Maximum Filling Depth | 16 mm |
GST No - 24AAICT4044N1Z2 | Member since 2023
PLOT NO 438, GIDC KATHAWADA ROAD NO 11, KATHWADA, KATHWADA, AHMEDABAD, Ahmedabad, Gujarat, 382430
Looking for the latest R&D AWC Tablet Press Mini, Model Name/Number: Tab 10a-12 price in Ahmedabad? Tabpack Private Limited, one of Ahmedabad's best R&D AWC Tablet Press Mini, Model Name/Number: Tab Read More...
Product Details
Product Details:- Technical modification reserved. The maximum output is subject to the material, tablet/punch size, and compression force. We reserve rights of alteration because of technical improvements. The TAB 20A Standard 12 Station BB Tooling Single Layer Tablet Press Machine is a small rotary pharmaceutical tablet press, delivering performance for R & D Applications, clinical batches, and small-scale production.
