Home » Lifting Hooks, Chains & Clamps » Lifting Clamps » IPU10 Vertical Clamps

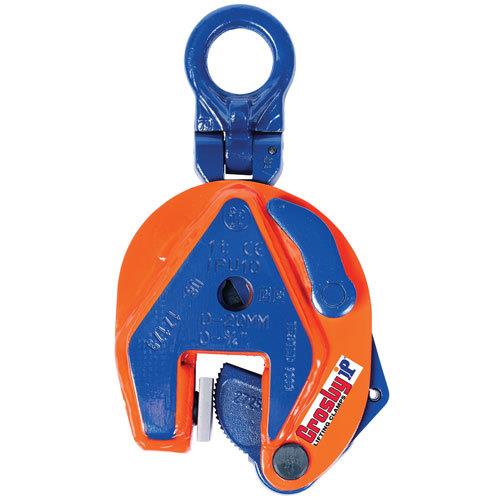

IPU10 Vertical Clamps
₹ 999 Get Latest Price
Product Specifications
| Material | Alloy Steel |
| Model | IPU 10 |
| Brand | Crosby |
| Capacity | .5 thru 30 metric tons |
| Wide Variety of Jaw Openings | 0 to 6.13 Inch |
| Application | Industrial |
GST No - 24AHQPP2102H1ZJ | Member since 2023
SHOP NO 15, DHAMANWALA COMPLEX, OPP SBI GIDC, PANDESARA, Surat, Gujarat, 394221
Looking for the latest IPU10 Vertical Clamps price in Surat? Jay Agenciez, one of Surat's best IPU10 Vertical Clamps sellers & manufacturers, offers a wide range of IPU10 Vertical Clamps from high-q Read More...
Product Details
Welded alloy steel body for strength and smaller size. Forged alloy components, where required.Individually Proof Tested to 2 times the Working Load Limit with certification.Company name (IP), logo, Working Load Limit and jaw opening permanently stamped on body.Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included onthe test certificate with maintenance and warranty logbook. Available in a variety of styles:IPU10 - Standard clamp for materials with a surface hardness to37Rc (345 HB)IPU10J - Larger jaw opening.IPU10S - For use with Stainless Steel material.IPU10H - For use with materials with a surface hardness to47Rc (450 HB).Full 180� turning range for material transfer, turning or moving.Lock open, lock closed ability with latch for pretension on material and then release of material.
Optional IP-5000 Stinger assembly available (see page 382). Allows for easy connection between the clamp and hoist hook.Minimum WLL of 10% of Maximum WLL.Maintenance replacement kits are available.Manufactured by a ISO 9001 facility.All sizes are RFID EQUIPPED.
Additional Information
| Item Code | IPU10 |
