Reciprocating Pump Test Rig (Variable Speeds With Swinging Field Dynamometer)
₹ 95,000 Get Latest Price
| Brand | Others |
| Tank material | (stainless steel material ) |
| Drive | 1 HP DC motor swinging field type With speed control |
| Measuring tank | 350 x 500 x 400 mm size, Capacity 70 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| Medium flow | Clear water |
| Spring balance | Dial type |
GST No - 06AVUPS3304A1ZP
Member since 2022
56, SAINI SCIENTIFIC INDUSTRY, LUXMI NAGAR, AMBALA CANTT, Ambala, Haryana, 133001
The present Reciprocating Pump Test Rig is a self contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Double acting, Single Read More...
Related Products
0.5 KW Francis Turbine Test Rig, For Laboratory Equipment
₹ 68,000
| Finish : Polished |
| Frequency : 60 Hz |
| Rig Capacity : 0.5 kW |
| Test Component : Engine Test |
Submersible Pump Test Rig Labappara, For Industrial
₹ 50,000
| Country of Origin : Made in India |
| Material : Stainless Steel. |
| Packaging Details : Packed in Cardboard Box. |
| Production Capacity : 250 |
Pelton Wheel Turbine Test Setup - (SIMHPW-01)
₹ 1,40,000
| Application : Lab Purpose |
| Generator/Alternator Type : Educational Equipment |
| Power : 1.3 HP to 5 HP |
| Speed (RPM) : 1000 RPM |
₹ 55,000
| Application : Industrial |
| Feature : Easy to Operate |
| Size : As per customer requirement |
Mild Steel Flanged Type Ball Valve Test Rigs, Model Name/Number: Sh/Vtb
₹ 3,75,000
| Automation Grade : Semi-Automatic |
| Delivery Time : 6 to 8 Weeks |
| Material : Mild Steel |
| Minimum Order Quantity : 1 Number |
Valve Test Rig Industrial Testing Rigs, For Automobile, Engine Test
₹ 4,50,000
| Brand : Sri Ayyappa Industries |
| Material : MS |
| Size : 7 x 6 x 6 ft |
| Test Component : Engine Test |
₹ 2,65,000
| Brand : TEI |
| Material : MS |
| Minimum Order Quantity : 1 |
| Power Source : Electric |
₹ 5,85,000
| Dimension : 300mm X 300mm or 600 mm X600 mm |
| Material : MS or wood |
| Minimum Order Quantity : 1 Piece |
| Model Name/Number : SPEE/WT-01 |
General Details
| model | Reciprocating Pump Test Rig (Variable Speeds With Swinging Field Dynamometer) |
| Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| Country of Origin | Made in India |
| model number | SSIFMHL-011D |
| Pump | Double acting single cylinder, capacity 1HP, Speed 250 RPM (max.) , head 5 kg/cm2 ( max.) Everest |
| Drive | 1 HP DC motor swinging field type With speed control |
| Spring balance | Dial type |
| Measuring tank | 350 x 500 x 400 mm size, Capacity 70 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| Medium flow | Clear water |
| Gauge | One piece vacuum gauge And one piece pressure gauge |
| Stop watch | Electronic type |
| Tank material | (stainless steel material ) |
Description
Product Description
manufacture of Reciprocating pump test rig. (Variable Speeds with Swinging Field Dynamometer).

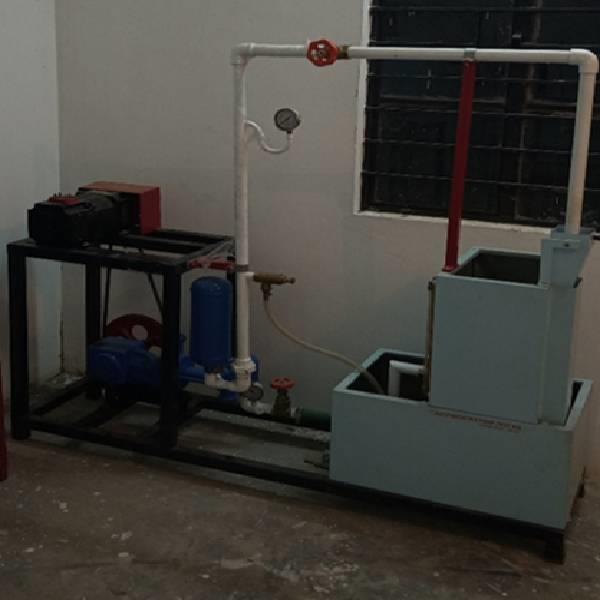

counted among the listed manufacturers, supply and exporters of premium quality of Reciprocating pump test rig. (Variable Speeds with Swinging Field Dynamometer). The present Reciprocating Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Double acting, Single Cylinder Reciprocating Pump coupled with a swinging frame type DC Motor that permits direct torque measurement with the help of a spring balance. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates RPM of Pump. Flow of water is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure pressure
