Reciprocating Pump Test Rig ( With 3 Prefixed Speeds)
₹ 58,000 Get Latest Price
| Brand | Others |
| Tank material | (stainless steel material ) |
| Drive | 1 HP AC motor, Crompton make having step cone pulley for three different prefixed speeds. |
| Measuring tank | 350 x 500 x 400 mm size, Capacity 70 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| Pressure gauge | Bourdon type , range 0-4 kg/cm2 |
| Medium flow | Clear water |
GST No - 06AVUPS3304A1ZP
Member since 2022
56, SAINI SCIENTIFIC INDUSTRY, LUXMI NAGAR, AMBALA CANTT, Ambala, Haryana, 133001

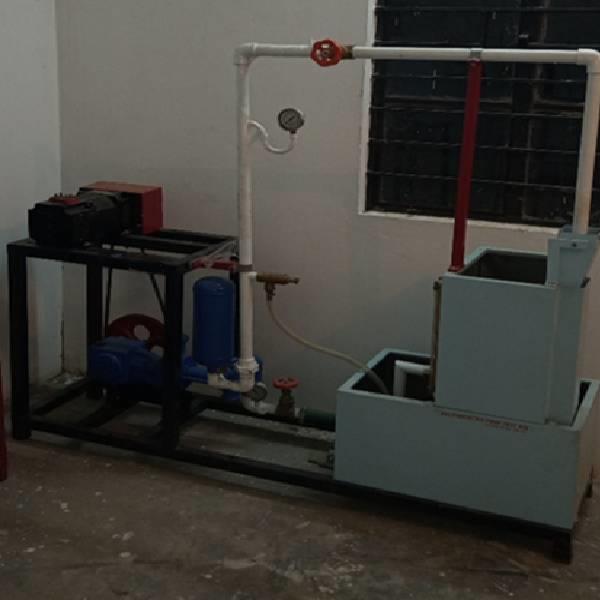

The present Reciprocating Pump Test Rig is a self contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Double acting, Single Read More...
Related Products
₹ 1,45,000
| Finish : Polished |
| Frequency : 60 - 70 Hz |
| Material : Steel |
| Range : 60 LPM |
₹ 8,00,000
| Color : Green, Gray etc |
| Material : MS |
| model : Wind Tunnel |
| Phase : 3 Phase |
Pelton Wheel Turbine Test Setup - (SIMHPW-01)
₹ 1,40,000
| Application : Lab Purpose |
| Generator/Alternator Type : Educational Equipment |
| Power : 1.3 HP to 5 HP |
| Speed (RPM) : 1000 RPM |
₹ 1,48,000
| Delivery Time : 15 days |
| Material : MS |
| Minimum Order Quantity : 1 Piece |
| Packaging Details : Cardboard Box export worthy. |
₹ 5,85,000
| Dimension : 300mm X 300mm or 600 mm X600 mm |
| Material : MS or wood |
| Minimum Order Quantity : 1 Piece |
| Model Name/Number : SPEE/WT-01 |
Francis Turbine Kaplan Hydro Turbine
₹ 50,000
| Country of Origin : Made in India |
| Frequency : 60 Hz |
| IP Rating : IP56 |
| Packaging Type : Box |
₹ 55,000
| Application : Industrial |
| Feature : Easy to Operate |
| Size : As per customer requirement |
Valve Test Rig Industrial Testing Rigs, For Automobile, Engine Test
₹ 4,50,000
| Brand : Sri Ayyappa Industries |
| Material : MS |
| Size : 7 x 6 x 6 ft |
| Test Component : Engine Test |
Submersible Pump Test Rig Labappara, For Industrial
₹ 50,000
| Country of Origin : Made in India |
| Material : Stainless Steel. |
| Packaging Details : Packed in Cardboard Box. |
| Production Capacity : 250 |
Valve Test Rig, For Industrial
₹ 1,99,900
| Minimum Order Quantity : 1 |
| Test Component : Engine Test |
| Type : Kaplan Turbine Test Rig |
| Usage/Application : Industrial |
General Details
| model | Reciprocating Pump Test Rig ( With 3 Prefixed Speeds) |
| Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| Pipe fitting | GI pipe. |
| Country of Origin | Made in India |
| model number | SSIFMHL-011A |
| Pump | Double acting single cylinder, capacity 1HP, Speed 250 RPM (max.) , head 5 kg/cm2 ( max.) Everest |
| Drive | 1 HP AC motor, Crompton make having step cone pulley for three different prefixed speeds. |
| Measuring tank | 350 x 500 x 400 mm size, Capacity 70 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| Medium flow | Clear water |
| Gauge | One piece vacuum gauge And one piece pressure gauge |
| Stop watch | Electronic type |
| Pressure gauge | Bourdon type , range 0-4 kg/cm2 |
| Tank material | (stainless steel material ) |
Description
Product Description
manufacture of Reciprocating pump test rig. (With 3 prefixed speeds).
counted among the listed manufacturers, supply and exporters of premium quality of Reciprocating pump test rig. (With 3 prefixed speeds). The present Reciprocating Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Double acting, Single Cylinder Reciprocating Pump coupled with an AC Motor. Flow of water is measured by using measuring tank and stopwatch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
