Hydraulic Cylinders
A hydraulic cylinder is a linear actuator designed to provide precise linear actuation of hydraulic fluid to create mechanical force and motion in heavy machinery and industrial equipment. This is a vital power transmission component that is able to provide greater force output with precise control of positioning for equipment used in heavy construction equipment, manufacturing machinery and mobile hydraulics, where reliable linear actuation and high force application are important for the performance of equipment and operational productivity. Common applications of hydraulic cylinders would be boom and bucket operation in excavators, press ram actuation in manufacturing equipment and lifting systems for material handling. This is typically done without the use of or need for complicated mechanical linkages or multiple sources of power and energy. Hydraulic cylinders use a precision-machined cylinder barrel, high-strength piston assembly and various sealing systems to produce outstanding pressure ratings along with reliable operation in the demanding environment of industrial machine use and duty cycles found in many industries. Innovative hydraulic engineering allows hydraulic cylinders to produce consistent output force while supporting smooth control of motion and positioning accuracy, leak-free use and service through highly engineered seals and surface treatments rated for operating pressures. Hydraulic cylinders provide a range of unique mountings that allow flexibility for different loads and installation conditions in conjunction with a range of stroke lengths, bore sizes, and port connections for application requirements and system integration needs. Find some of the best hydraulic cylinders at Aajjo. Read more
Related Categories
- Forged Component
- Stainless Steel Spacer
- Diaphragm Seal
- Adapter Sleeve
- Agricultural Castings
- Mild Steel Castings
- Aluminum Castings
- Cast Iron Bearing Housings
- Aluminium Rivet
- Stainless Steel Wire Snap Ring
- Wire Form
- Constant Force Spring
- Chain Link Fencing Machine Die
- Copper Thimble
- Alignment Shim
- Metal Cylinder
- Hitch Pin Clip
- Dowel Pin
- Circlip
- Inflatable Gasket
- Linear Bearing
- Linear Bush Bearing
- Needle Roller Bearing
- Needle Bearing
- Spherical Roller Bearing
- Rod End Bearing
- Milling Spring
- Brass Spring
- Aluminium Slide Block
- Industrial Spring
- Barrel Spring
- Hollow Rivet
- Bearing Washer
- Linear Shaft
- SKF Bearings
- Bearing Shaft
- Track Roller Bearing
- Cam Follower Bearing
- Flanged Bearing
- Bearing Cages
- Plastic Bearing
- Tapered Roller Bearings
- Crossed Roller Bearings
- Dry Bushings
- Chain Coupling
- Mild Steel Components
- Vertex Simple Indexing Spacer
- Trowel Clutch Pulley
- T-Nut
- Bearing Choke
- Steel Casting
- E Clip
- MS Wire Nail
- Cutting Dies
- HH Socket Eye
- Clevis Eyes
- Ball Link
- Blister Die
- Tensioner Bolt
- Packer Hook For Flour Mill
- Industrial Clutches
- Plastic Ball Bearing
- Thermostatic Expansion Valve
- Torque Rod Bushes
- Railway Bolt
- Metal Nuts
- Rail Screws
- Marine Castings
- MS Bolt Nut
- Self Drilling Screw
- T Bolt
- Coupling Nut
- Hillside Washers
- Pin Screw
- Bearing Plate
- PTFE Bushes
- Roller Bearing Housing
- Dye Springs
- Linch Pins
- Pneumatic Clutches
- Machine Parts
- Shear Dies
- Blind Rivet Nuts
- Drum Brake
- Flare Nuts
- Track Bolts
- Lock Pins
- Valve Seal
- Seat Spring
- Taper Pins
- Brass Ball Cage
- Rectangular Washer
- Square Washers
- Servo Valve
- High Tensile Washer
- Proportional Valve
- HSFG Washer
- Metal Tusker Pana
- Braiding Machine Parts
- Spiral Separator Spare Part
- Asbestos Jointing Sheet
- Non Asbestos Jointing Sheet
- Hydraulic Press Cylinder
- Hydraulic Cylinder Assembly
- Custom Hydraulic Cylinder
- Telescopic Hydraulic Cylinder
- Tie-rod Hydraulic Cylinder
- Leather Washers
- Ice Cream Machine Handle
- Roller Bearing
- Industrial Hydraulic Cylinders
- Precision Locknuts
- Through Bolts
- Hydraulic Shock Absorbers
- DC Power Pack
- Carbon Vane
- Lead Seals
- Mild Steel Springs
- FRP Nuts
- SS Anchor
- Rod Wiper
- Agricultural Gearbox
- Drum Locking Ring
- Two Way Ball Valve
- Bearings Repairing Services
- Lock Bolt
- Radial Shaft Seals
- Ball Transfer
- Wire Nail Machine Spare Parts
- Bending Spare Parts
- Carbon Seals
- Briquetting Machine Spare Parts
- Crossed Roller Slide
- Roller Rubber Rings
- Rubber Strips
- Spring Nut
- Pelletizer Parts
- Compression Springs
- High Pressure Hydraulic Cylinders
- D Shackle
- Turnbuckle
- Jaw Couplings
- Air Shaft
- Air Expanding Shaft
- Differential Shaft
- Solenoid Valve
- Battery Box
- Paper Plate Die
- Stainless Steel Glass Stud
- Galvanized Trunks
- Three Way Ball Valve
- Plastic Moulding Dies
- Cast Iron Flywheel
- Die Rollers
- Seal Kit
- Engine Gasket Set
- Double-acting Air Cylinder
- Shear Stud
- Guide Block
- Machined Shafts
- Threading Dies
- Thermostatic Radiator
- Thermostat Valves
- Hydraulic Valves
- U Bolt
- Bending Spring
- Floor Spring
- Hanger Bearings
- Rubber Seals
- Roto Seal Coupling
- Pneumatic FRL Unit
- MS Fasteners
- Mounting Plates
- Macaroni Die
- Wall Plug
- Candle Die
- Sheet Forming Machine
- Stainless Steel Washers
- Calender Rolls
- Taper Roller
- Rubber O Ring
- Silicon O Rings
- Neoprene O Ring
- Roofing Sheet Making Machine
- Foundation Bolts
- Saw Chain Jointer
- Hydraulic Power Pack
- Sheet Pressing Machine
- Riveting Machine
- Cantilever Shaft
- Cam Indexing Drive
- Automatic Brake Shoe Riveting Machine
- Automatic Feed Riveting Machine
- Sheet Polishing Machine
- Pneumatic Cylinder
- Clutch Brake Combination Unit
- Sheet Leveler Machine
- Perforating Press
- CR Sheets
- Hand Flanger
- Metal Sheet Straightening Machine
- Diamond Sheet Making Machine
- Key Way Attachment Vice
- Die Springs
- Wash Basin Screw
- Wood Fastener
- Wedge Anchor
- Rawl Bolt
- Mild Steel Anchor
- Stainless Steel Tapping Screw
- Stainless Steel Nails
- Gripper Bar
- Stainless Steel Hex Bolt
- Stainless Steel Hex Nut
- Hardware Spare Parts
- L Bolt
- J Bolts
- Anchor Bolt
- Eye Bolts
- Stud Bolts
- Hydraulic Cylinder Testing Station
- Rock Breaker Bushes
- Linear Guideway
- Ball Screw Support Bearing
- Tablet Punches & Dies
- Rubber Bushings
- Shock Mounts
- Casing End Seal
- Air Spring
- Stainless Steel Bushings
- PTFE O-Rings
- Stainless Steel Bearing
- Roller Shutter Spring
- Bearing Sleeves
- Metal Pins
- Chuck Nut
- Investment Castings
- Mechanical Seals
- Banjo Bolt
- Stainless Steel Spring
- Hydraulic Cylinder Part
- Slewing Bearing
- Closed Die Forging
- Alloy Steel Forging
- Track Roller
- Wear Ring
- Press Brake Dies
- Bending Die
- Double Agitator Seal
- Brake Set
- Gas Spring
- Drywall Screw
- Plummer Block
- Thread Rolling Die
- Metal Fastener
- Guide Post Set
- Slipper Die
- Cold Heading Dies
- Carbide Bar Drawing Dies
- Valve Washer
- Carbon Thrust Bearing
- Ductile Iron Casting
- Stainless Steel Casting
- Ball Plunger
- C Washer
- Collet Nut
- Traub Component
- Copper Washer
- Clamping Cylinder
- Pump Nut
- Mild Steel Spring Washer
- Plain Washer
- Brass Washer
- Aluminium Extrusion Die
- Pillow Block Bearing
- Press Tool
- Aluminium Gravity Die Casting
- CI Casting
- Tamping Rammer Spare Part
- Anchor Nuts
- Wing Nut
- Horizontal Drive Unit
- Gunmetal Bushes
- Brass Bush
- Bronze Bushes
- Self Lubricating Bushing
- Discharge Gate Bush
- EE Swivel Thrust Ball Bearing
- Wire Rope Pulling Grip
- Mild Steel Square With Ring Adjuster
- Pvc Door Gasket
- Sheet Metal Pressed Components
- Spacer Ring
- Cast Iron Straight Edge
- Step Ejector Pin
- Guide Pillar
- Magnetic Wristband
- PTFE Combination Packing
- Coil Nail
- Graphited PTFE Packing
- Mild Steel Casting Service
- Grundfos Tp Kit Service
- Festo Cylinders
- Nitrile Oil Seal
- Nylon Ring
- Jacketed Gasket

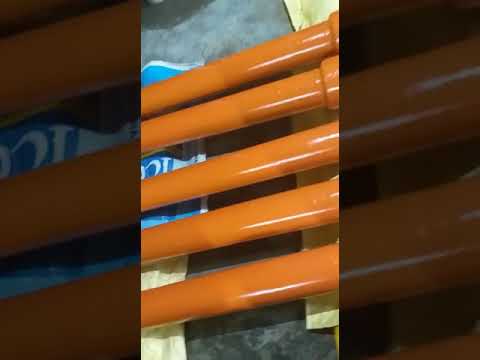

Hydraulic Cylinders
₹ 5,000
Get Best Price| Brand: Others |
| Automation Grade : Manual |
| Feature : Easy To Operate, Trouble Free Performance |
| Finishing : Polished |
| Shape : Round |
₹ 8,50,000
₹ 10,500
₹ 45,000
Hydraulic Cylinders
₹ 20,000
Get Best Price| Brand: Others |
| Finishing : Paint Coated |
| Material : Iron |
| Model : Hydraulic Cylinders |
| Shape : Cylindrical |
Share Your Requirements
For a Quick response, Please fill up the details below.
Mild Steel Double-Acting Hydraulic Cylinder, Capacity: 50 Ton, 500 Psi
₹ 15,000
Get Best Price| Brand: Others |
| Capacity : 50 TON |
| Color : As per customer need. |
| Material : Mild Steel |
| Max Pressure : 500 PSI |
HORIUCHI Hydraulic Cylinder
₹ 31,000
Get Best Price| Brand: Others |
| Capacity : VARY |
| Material : VARY |
| Model : HORIUCHI Hydraulic Cylinder |
| Usage/Application : WIDE |
Mild Steel 12.5 Ton Hydraulic Cylinder For Drilling Rig Machine
₹ 12,000
Get Best Price| Brand: Others |
| Brand : spm hydraulics |
| Capacity : 6 Ton |
| Color : YELLOW |
| Country of Origin : Made in India |
Mild Steel Hydraulic Compact Cylinder
₹ 6,500
Get Best Price| Brand: Others |
| Bore Diameter : 40 mm |
| Color : Blue |
| Dimension/Size : As per customer requirement |
| Material : Mild Steel |
Paper Mill Hydraulic Cylinder
₹ 13,500
Get Best Price| Brand: Others |
| Material : MS |
| Max Pressure : 320 Bar |
| Model : Paper Mill Hydraulic Cylinder |
| Power Source : Hydraulic |
₹ 7,250
₹ 10,000
Hydraulic Cylinders .
₹ 9,000
Get Best Price| Brand: Others |
| Bore : Up to 3 mtrs |
| Brand : Flowmech Engineers |
| Condition : New |
| Delivery Time : 30 to 40 Days |
MHE MOVERS Motorized Goods Lift, For Warehouse, Capacity: 1 ton
₹ 1,80,000
Get Best Price| Brand: Others |
| AMC/After Sales Service : Required |
| Brand : MHE MOVERS |
| Capacity : 1 ton |
| Color : Blue |
Welded Type Cylinder
₹ 16,000
Get Best Price| Brand: Others |
| Material : Mild Steel |
| Max Pressure : 5 Bar To 210 Bar. |
| Model : Welded Type Cylinder |
| Power Source : As per product |
₹ 6,000
₹ 10,000
Iron Hydraulic Pumps & Cylinder, For Heavy Duty Vehicle Lifting
₹ 48,000
Get Best Price| Brand: Others |
| Bore Diameter : 100 mm |
| Country of Origin : Made in India |
| Material : Iron |
| Output Capacity : more than 1000 ton/day |
Compact Magnetic Cylinder
₹ 3,000
Get Best Price| Brand: Others |
| Brand : JANATIC |
| Size : 12X5 12X10 12X15 12X25 16X20 20X6 20X10 20X15 20X20 |
Mild Steel Tie Rod Cylinder, 40mm To 200 Mm, 3000 Psi
₹ 5,000
Get Best Price| Brand: Others |
| Bore Size : 40MM TO 200 MM |
| Brand : U - TECH HYDRAULIC |
| Country of Origin : Made in India |
| Material : MILD STEEL |
Goods Elevator
₹ 3,50,000
Get Best Price| Brand: Others |
| AMC/After Sales Service : Provided |
| Application Industries : Distribution Centers, Warehouses, Self storage, Factories, Car dealerships |
| Brand : LIFTOKRAFT |
| Capacity : 1-2 ton, 3-4 ton, 2-3 ton, 0-0.5 ton, 4-5 ton |
Iron Hydraulic Press Cylinder, For Industrial, Telescopic
₹ 5,000
Get Best Price| Brand: Others |
| Bore Diameter : 25 mm |
| Cylinder Type : Telescopic |
| Dimension/Size : 100 |
| Height : 10000 |
Mild Steel Single Acting Hydraulic Cylinder, For Heavy Duty Vehicle Lifting, Capacity: 5 Ton
₹ 6,500
Get Best Price| Brand: Others |
| Acting Type : Single Acting |
| Bore Diameter : 63 mm |
| Capacity : 5 Ton |
| Country of Origin : Made in India |
Unique Red Single Acting Low Height Jacks, For Industrial
₹ 8,000
Get Best Price| Brand: Others |
| Brand : Unique |
| Capacity : >100 Ton |
| Close Height : 95 mm |
| Color : Red |
Clevis Mounted Hydraulic Cylinders
₹ 40,000
Get Best Price| Brand: Others |
| Brand : Sumeet |
| Capacity : 3.5 Ton |
| Cylinder Type : Single Acting |
| Material : Mild Steel |
Brown Stainless Steel Industrial Hydraulic Cylinders
₹ 10,000
Get Best Price| Brand: Others |
| Brand : Jackman |
| Finishing Type : Galvanized |
| Maximum Stroke : 600 mm |
| Packaging Type : Plastic Wrap |
Criefco Mild Steel Single Acting Hydraulic Cylinder, Capacity: upto 2000 Ton
₹ 65,890
Get Best Price| Brand: Others |
| Brand : Criefco |
| Capacity : upto 2000 Ton |
| Dimension/Size : Different |
| Material : Mild Steel |
Ahmedabad, Gujarat
Front Flange Mild Steel Double Acting Hydraulic Cylinder, For Industrial, 160 Bar
₹ 35,000
Get Best Price| Brand: Others |
| Bore Diameter : 300 mm |
| Cylinder Type : Double Acting |
| Material : Mild Steel |
| Max Pressure : 160 Bar |
Rescue Hydraulic Ram Aeroboom, Model Name/Number: AGYCD-120/570-Q
₹ 40,000
Get Best Price| Brand: Others |
| Closed Length : 350mm |
| Dimensions L*W*H : 350x180x90mm |
| Features : Connected with Q-hydraulic motor pump, the Q-hydraulic Ram can lift metal or nonmetallic structures |
| Max. Extending Force : 120KN |
MS Double Action Cylinder Hydraulic Machine, For Industrial
₹ 1,55,000
Get Best Price| Brand: Others |
| Brand : Baba Hydraulic |
| Capacity : 100 Ton |
| Color : Red |
| Country of Origin : Made in India |
Hydraulic Cylinder
₹ 10,000
Get Best Price| Brand: Others |
| Dimension/Size : Customized |
| Max Pressure : Customized |
Pneumatic Hydraulic Cylinder
₹ 5,000
Get Best Price| Brand: Others |
| Material : MS |
| Maximum Stroke : 15500 mm |
| Shaft Diameter : 14-800 mm |
| Working Pressure : 7 Mpa-35 MPa |
Stainless Steel Cylindrical Magnetic Hydraulic Cylinder, For Industrial, Capacity: 100 Ton
₹ 15,000
Get Best Price| Brand: Others |
| Brand : Jyoti Hydraulic |
| Capacity : 100 Ton |
| Material : Stainless Steel |
| Maximum Pressure : 250 Bar |
Single Acting Hydraulic Cylinder
₹ 80,000
Get Best Price| Brand: Others |
| Material : Steel |
| Maximum Stroke : 6000 mm |
| Model : Single Acting Hydraulic Cylinder |
| Rod Material : C1045 |
₹ 2,00,000
₹ 22,000
₹ 12,000
25ton Industrial Hydraulic Cylinder
₹ 32,000
Get Best Price| Brand: Others |
| Capacity : 25ton |
| Material : Mild Steel |
| Model : 25ton Industrial Hydraulic Cylinder |
| Structure Type : Round |
Cast Iron Hydraulics Cylinders LAB, Single Acting, For Industrial
₹ 5,000
Get Best Price| Brand: Others |
| BRAND : AGN |
| Country of Origin : Made in India |
| Cylinder Type : Single Acting |
| CYLINDER : BRASS |
Tie Rod Hydraulic Cylinder, For Industrial, Capacity: 10-50 ton
₹ 8,000
Get Best Price| Brand: Others |
| Bore : 32-180 mm |
| Brand : EQUATOR |
| Capacity : 10-50 ton |
| Type : Hydraulic Cylinder |
Automatic Welded Body Hydraulic Cylinder
₹ 5,000
Get Best Price| Brand: Others |
| Automatic Grade : Automatic |
| Material : Steel |
| Maximum Stroke : 300 mm |
| Pressure (Bar) : 300 |
₹ 15,000
₹ 12,000
Cast Iron Hydraulic Ram Cylinder, For Heavy Duty Vehicle Lifting, Double Acting
₹ 15,000
Get Best Price| Brand: Others |
| Bore Diameter : 30 mm |
| Brand : Universal Hydraulics |
| Cylinder Type : Double Acting |
| Material : Cast Iron |
Nagpur, Maharashtra
Double Acting Hydraulic Cylinder
₹ 25,000
Get Best Price| Brand: Others |
| Capacity : 20 Ton |
| Max Pressure : 200 bar |
| Model : Double Acting Hydraulic Cylinder |
| Mounting Style : Front Or Rear Flange |
All Types Hydraulics Cylinder
₹ 24,999
Get Best Price| Brand: Others |
| Acting Type : as per customer requirement |
| Bore Diameter : 350 mm |
| Cylinder Type : Double Acting |
| Material : ms |
HSM Mild Steel Double Acting Hydraulic Cylinder
₹ 10,000
Get Best Price| Brand: Others |
| Brand : HSM |
| Material : Mild Steel |
| Max. Stroke : 500 mm |
| Rod Diameter : 90 mm |
₹ 10,000
Tubular Reversible Solenoid, For Industrial
₹ 3,500
Get Best Price| Brand: Others |
| Color : Silver |
| Country of Origin : Made in India |
| Finishing : Polished |
| Material : Stainless Steel |
Spareage Mild Steel Hydraulic Loader Cylinder, For Heavy Duty Vehicle Lifting
₹ 7,800
Get Best Price| Brand: Others |
| Brand : Spareage |
| Capacity : 11-40 Ton |
| Country of Origin : Made in India |
| Delivery Time : 1 to 2 Week |
Stainless Steel Excavator Hydraulic Cylinder
₹ 22,000
Get Best Price| Brand: Others |
| Material : Stainless Steel |
| Maximum Stroke : 300 mm |
| Power : Hydraulic |
Related Videos
Featured Categories
- Industrial Belts & V Belts
- Water Treatment & Purification Plant
- Liquid Packaging Machinery
- Pumps, Pumping Machines & Spares
- Printing Machinery & Equipment
- Wrapping & Banding Machines
- Moulding Machine
- Conveyor Systems & Components
- Industrial Mixing Machine
- Industrial Coolers, Blowers & Fans
- Industrial Valves & Valve Fittings
- Dryers & Evaporators
- Process Tanks & Chemical Reactors
- Fast Food & Beverages Machinery
- Pollution Control Devices & Machines
- Filter Assemblies and Spare Parts
- Oil Mill & Oil Extraction Machinery
- Pharmaceutical Machinery & Equipment
- PVC, LDPE, HDPE & Plastic Sheets
- Brakes & Braking Systems
- Strapping & Sealing Machines
- Woodworking Tools & Machines
- Packaging Machines & Goods
- Machines & Equipments
- Testing & Measuring Equipments
- Chemical Plants & Machinery
- Plastic Work & Processing Machines
- Filters & Filtration Systems
- Paper Work & Making Machine
- Industrial Mixers & Homogenizers
- Die Casting Mould & Moulding Tools
- Chemicals, Dyes & Allied Products
- Footwear Machinery
- Separators, Strainers & Purifiers
- Hand & Machine Tools
- Crusher, Shredder & Presses
- Fruit & Vegetable Processing Machine
- Storage Tanks, Drums & Containers
- Lab Instrument
- Bakery & Dairy Machinery
- Rubber, Rubber Processing Machinery
- Industrial Chemicals
- Material Handling Machines & Systems
- Milling & Grinding Tools
- Cutting Machines & Equipment
- Bar, Neodymium & Permanent Magnets
- Hydraulic & Pneumatic Machines
- Soap & Sanitizer Dispenser
- Machine & Precision Tools
- Extraction Plants and Extruders
- Protective Packing Materials
- Industrial & Engineering Goods
- Air Compressors, Accessories & Parts
- Drilling Bits, Collets and Chucks
- CNC Machines & Lathe Machine
- PVC, FRP, HDPE & Other Plastic Pipes
- Surface Coating & Paint Equipment
- Drilling & Boring Equipment
- Wire Drawing & Cabling Machines
- Filling Machines & Plants
- Chemical Reactors and Process Tanks
- Casting, Moulding & Forging Machines
- Industrial Air Conditioner & Devices
- Industrial Furnaces & Ovens
- Gearbox, Axle, Sprocket & Gear Parts
- Oxygen & Nitrogen Gas Plants
- Meat & Seafood Processing Equipments
- Bending & Metalwork Machines
- Weight Bowl & Weighting Scale
- Musical Equipment & Accessories
- Incinerator
- Laser Marking & engraving Machine / System
- Sewing,Knitting & Embroidery Machine
- Welding Equipments & Machinery
- Apparel & Textile Machinery
- Boilers & Boiler Parts
- Used Machinery & Tools
- Binding and Pressing Machines
- Closing & Sealing Machines
- Jewellery Making Tools & Machines
- Cutting Tools & Milling Cutter
- Hydraulic & Pneumatic Cylinders
Top Hydraulic Cylinders Manufacturer and Supplier
Hydraulic Cylinders related Questions/Answers
What is the hydraulic cylinder?
A hydraulic cylinder is a machine part - it applies pressurized fluid to generate a straight line of force and movement. The cylinder belongs to hydraulic systems in many machines, like construction vehicles, factory tools along with even some cars. This part typically has a tube, a piston that shifts inside the tube, plus a rod. The rod links to the piston and sticks out of the cylinder. When people pump hydraulic fluid into one side of the piston, it shoves the piston also rod - this causes the connected object to move or feel a push. When people pump fluid into the other side, the piston and rod go back. That simple yet powerful device helps lift, press, or move heavy objects with exactness as well as power. Hydraulic cylinders come in various sizes and kinds. But all of them work on the same basic idea; they turn fluid pressure into mechanical movement. Because of this, they are important for industrial plus engineering tasks.
What are the three types of hydraulic cylinders?
Hydraulic cylinders come in three main kinds - single acting, double-acting along with telescopic. A single acting cylinder applies hydraulic pressure to move its piston one way, often pushing out a rod. Another force, like gravity or a spring, sends the rod back to its starting spot. People put plain cylinders in jacks and lifts. A double acting cylinder has ports at both ends. Fluid pushes the piston in either direction. This cylinder extends plus pulls back using hydraulic power. That allows a person to control tasks like pressing or moving heavy loads. Telescopic cylinders have several tubes inside each other; they push out plus pull back like a telescope, so they offer a long reach from a small design. Dump trucks and construction machines use these. People select each cylinder type depending on what a job needs, weighing space, power as well as how much control they want.
What are the sizes of hydraulic cylinders?
Hydraulic cylinders come in various sizes for different uses. A cylinder's size relates mostly to its bore and rod diameters and its stroke length. Bore diameters begin at 25 millimeters, or about 1 inch, for light or small machines - these diameters extend up to 300 millimeters, or about 12 inches along with more for heavy industrial equipment. Rod diameters are typically less than the bore. A rod diameter is chosen according to the load plus the force needed. Stroke length, which measures the piston's travel distance, changes much depending on the cylinder's task. Some strokes measure only a few centimeters, but others stretch several meters. Smaller cylinders serve in car lifts or small machines. Larger ones appear in construction vehicles or manufacturing plants. Workers select the correct size based on the force required and the space available for the cylinder.
How to design a hydraulic cylinder?
A person starts designing a hydraulic cylinder by figuring out the exact work it must perform and the surroundings where it will operate. Engineers speak with the customer to learn the required force, speed along with pressure. They figure out the main dimensions. This includes the cylinder bore, which is the inside diameter - it also includes the piston rod diameter plus the cylinder's length. The length depends on the distance the piston moves. Workers select the bore and rod sizes based on the load also the available hydraulic pressure. Designers examine the cylinder wall and piston rod; they check if the parts bear the pressure without breaking. The designers choose suitable materials plus seals. The seals stop fluid leaks. They also help the cylinder last for a long time. They draw detailed plans with computer software - these plans show every part plus how each piece connects. The design undergoes a check for safety and quality before production begins. The entire process requires careful planning also specialized knowledge to produce a dependable hydraulic cylinder.
What is the HSN code for hydraulic cylinder?
In India, a HSN code for a hydraulic cylinder serves customs and tax functions. The common HSN code for a hydraulic cylinder is 84122100. This code means "hydraulic power engines plus motors, linear acting (cylinders)." Generally, this code applies to regular hydraulic cylinders that operate machinery and industrial equipment. Other codes describe this item, such as 84122990, which refers to other hydraulic power engines and motors. Code 841290 describes parts of these engines. For specific parts or when repairs are underway, people use different codes. People use code 84314390 or 843149, especially if the parts operate with certain types of machinery. The GST rate for these items normally stands at 18 %. The proper HSN code matters for correct invoicing as well as customs clearance, and to guarantee the right taxes go to the authorities. When you buy or sell hydraulic cylinders, always check which HSN code fits your product precisely. This practice helps prevent problems with customs or tax groups.
What is the pressure of a hydraulic cylinder?
A hydraulic cylinder deals with the force of fluid. The fluid pushes a piston. People measure pressure in bars or pounds per square inch. The pressure changes with the task force and the size of the piston. For example, if you need much force, you either raise the pressure or use a bigger piston area. Most hydraulic cylinders in industry work at 100-350 bar. Some customised cylinders can handle 700 bar or more in new applications. Pressure is listed by the manufacturer. The maximum safe cylinder pressure is this grade. The cylinder's design and its materials determine this rating. You must not exceed this pressure, for it can damage the cylinder or cause it to break. Regular inspections and maintenance help keep the pressure at a safe level; they also help the cylinder work correctly.
How do you measure a hydraulic cylinder?
To size a hydraulic cylinder, you find specific dimensions with a tape measure and calipers. The important measurements are the cylinder's inside diameter, the piston rod's thickness, and the rod's travel distance. To find the bore, measure the cylinder barrel's outer diameter. Then you subtract the thickness of both barrel walls. Use a caliper to measure the rod's width for its diameter. The rod's travel distance comes from extending the cylinder all the way out. Note the distance from one set point to another. Then pull it back in plus measure again. The difference between these two lengths is the stroke. You also write down the cylinder's retracted and extended lengths. You measure these from the center of one mounting pin to the center of the other - these numbers help you get the correct replacement or design for your use. Check the mount type and port sizes for a proper fit.
How does a hydraulic cylinder work?
A hydraulic cylinder operates with pressurized fluid to develop force and motion. Inside the cylinder, a barrel holds a piston. This piston fastens to a rod. The piston separates the barrel into two chambers. When hydraulic fluid pumps into one chamber, it pushes the piston. The rod then moves out or in, a state which depends on the side the fluid enters. Valves control this movement as they send the fluid into the proper chamber. The fluid's pressure works evenly in all directions inside the chamber, so a small force from the fluid can create a larger force on the piston - this follows Pascal's Law. The rod connects to the machine or part that requires movement. As the piston moves, it pushes or pulls the connected object. In double acting cylinders, fluid enters both sides. That allows the cylinder to push and pull. People use hydraulic cylinders in many machines to get powerful, exact along with controlled linear movement.
What is the function of pressure in a hydraulic cylinder?
The main force that drives a hydraulic cylinder comes from pressure. When a pump sends hydraulic fluid into the cylinder, the fluid creates pressure against the inner piston. The piston separates the cylinder into two parts. In each part, the pressure measures the same on all sides, as Pascal's principle states. This pressure acts on the piston's surface. A larger surface area creates more force. That force moves the piston, which connects to a rod. The rod's movement lifts, pushes, or pulls heavy items. The force amount depends on both the pressure and the piston area. If the pressure rises, the force also rises, so the cylinder lifts heavier loads or moves objects quicker. The pressure has to be enough to conquer the load. The pressure should not be so much that it breaks the cylinder. Seals hold the fluid inside, so the pressure does its work securely - this is how pressure operates at the core of a hydraulic cylinder.
How are hydraulic cylinders prepared for use?
To ready a hydraulic cylinder, a person completes many precise steps - these steps help the cylinder work well and stay safe. A worker cleans the area where they work; they also get all the parts plus tools they need. These parts include the proper fittings, seals along with oils. Before installation, a person inspects the cylinder and all its parts. They check for the right size, type as well as shape, especially the seals also end stops. A worker puts a thin layer of oil on the piston rod and its bearings. This lessens rubbing and wear. The worker cleans the hydraulic pipes plus hoses to remove dirt. This stops dirt from getting into the system. A worker lines up the cylinder and lifts it into position; they check that the connection holes also mounting spots fit the machine or frame. After the worker secures the cylinder with fasteners, they take out the protective plugs. They connect the hydraulic lines tightly so no fluid escapes. After putting it in place, a person removes air from the system and fills it with hydraulic fluid. A worker runs the cylinder through its full movement to check for smooth action as well as leaks. The cylinder is then ready for safe operation.
